6-32 Screw Switch
6-32 Screw Switch
6-32 Screw Switch

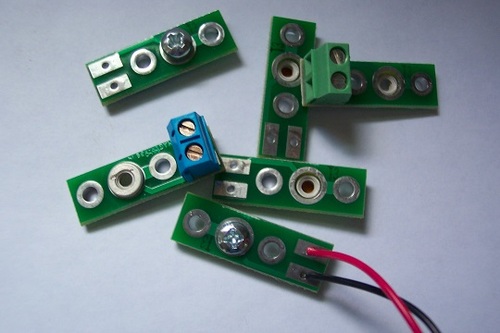

Click to enlarge
The MOST VERSATILE
Screw-Switch for HPR!
Features:

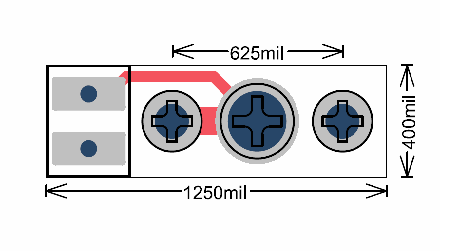

Extremely Robust 0.093" FR4 PCB (0.16" depth)
6-32 PEM nut is 100% annular reflow soldered
4-40 plated mounting holes can function as switch contacts
Also supports hard-wiring or 5mm compression-terminals*
Supplied with 6-32 x 3/16" panhead phillips screw
Practially sized fastening and operations
*shown with Missile Works TB-2 and Radio Shack 276-1388 terminals
(sold separately)
Customer Reviews
great switch for rocketry
This is a great switch. Easy to use and reliable. If you position it on your sled below your rivet hole, it's easy to access on the pad and arm it with a narrow Phillips head screwdriver, and then you just insert your rivet and you're done. The only drawback is that you have to solder the leads to it, which may be more than you want to do, but honestly it's not that hard to do. If you plan on using this, definitely buy the screw guides that Chris sells as well. They make the switch super easy to access and also prevent the screw from backing out too far when you disarm the altimeters.Tom Doherty (20 Sep 2024, 09:31)
